Designing and implementing scalable Node.js architecture

Get ready to embrace the power of modularity, decoupling, and non-blocking I/O models as you build resilient applications that can weather any storm. Let’s go!

16 May, 2023
post image

Does your Node.js application have trouble handling all of its events? Did it spend all of its cache? Don't worry! As frontend development services professionals, we're here to help you avoid that fate by teaching you the key principles, best practices, and techniques for building scalable Node.js architectures that can handle any event with ease.

Get ready to embrace the power of modularity, decoupling, and non-blocking I/O models as you build resilient applications that can weather any storm. Grab your modern engineering tech stacks as well, and we'll show you how to implement caching and load balancing strategies and even how to adopt microservices and containerization. Let’s go!

Introduction to scalable Node.js architectures

Here’s an overview of scalable Node.js architectures and their importance in modern applications. Don’t forget to also check out our other piece on engineering team performance metrics and KPIs. We’re sure it’ll come in handy.

Overview of Node.js and its core features

Node.js is an open-source, cross-platform JavaScript runtime for building high-performance, event-driven, non-blocking I/O applications using server-side JS. Its core features include a fast V8 JS engine, a lightweight event loop, a rich set of built-in modules, and a package manager called npm. This tool helps create scalable and efficient apps that handle a large number of simultaneous connections without blocking or slowing down the system.

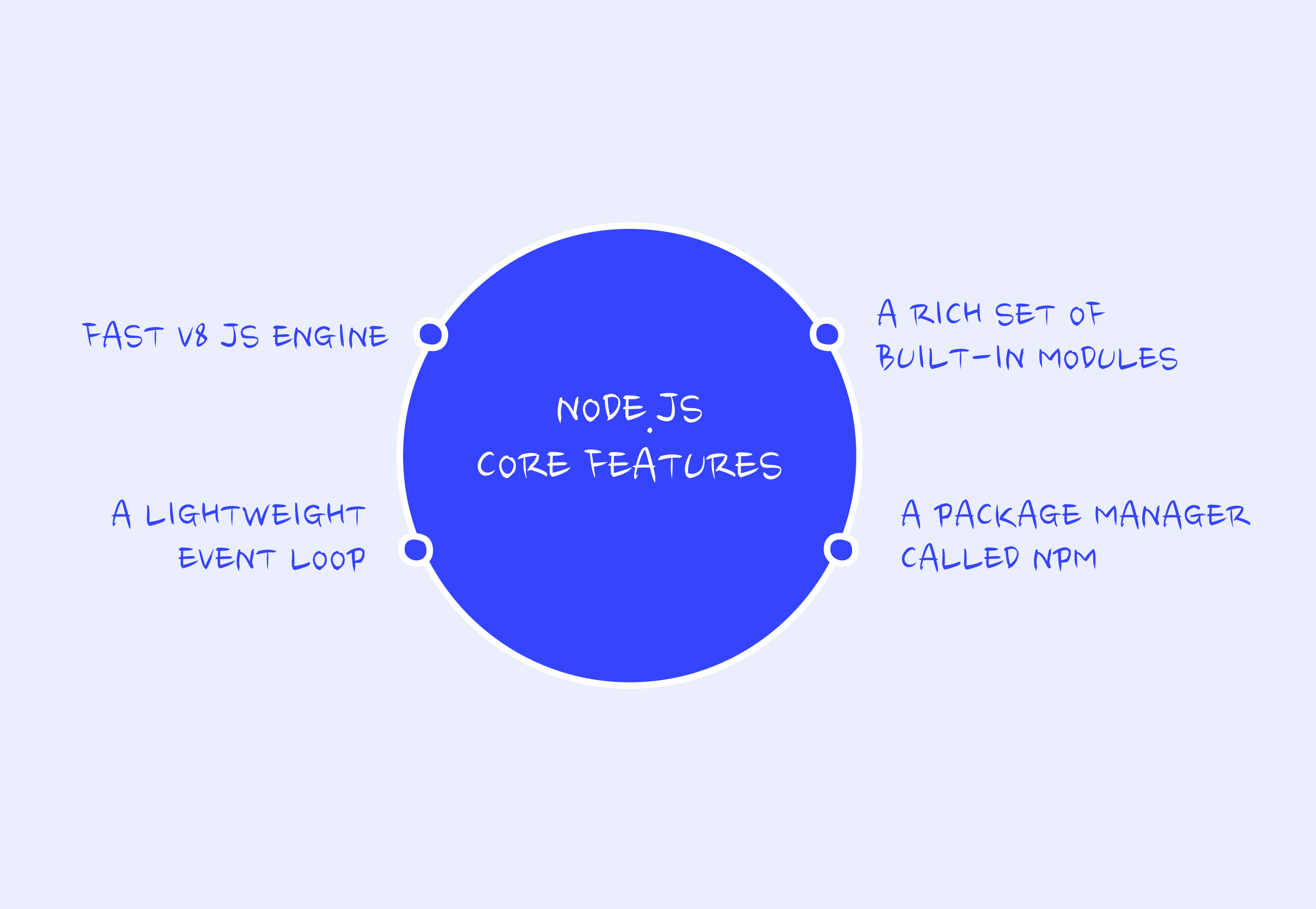

Node.js features
Node.js features

The importance of scalability in modern applications

Scalability is crucial in modern applications because it ensures that the system can handle an increasing number of users, requests, and data without compromising performance, reliability, or availability. Without scalability, applications can quickly become overwhelmed and suffer from downtime, slow response times, and other performance issues, leading to a poor user experience and lost revenue.

Key principles for designing scalable Node.js architectures

So, how to make scalable applications that can handle many simultaneous connections without sacrificing speed or reliability? Let’s look at the main principles.

Embracing modularity and decoupling

This principle emphasizes breaking down complex systems into smaller, independent modules that can be easily tested, modified, and reused. It reduces the interdependence between different system components, which helps prevent cascading failures, minimize the impact of changes, and improve fault tolerance.

Modularity and decoupling can be achieved by:

  • using a microservices architecture;
  • adopting a modular design pattern such as the Module Pattern or Revealing Module Pattern;
  • making sure that communication between modules is handled through well-defined interfaces or APIs;
  • using dependency injection frameworks like InversifyJS;
  • leveraging tools like npm to manage and share reusable packages.

Leveraging event-driven, non-blocking I/O models

Event-driven architecture helps Node.js execute multiple tasks concurrently and respond to incoming requests in a non-blocking way, which is essential for handling large volumes of traffic, while the non-blocking I/O features allow the efficient handling of many simultaneous connections.

To leverage this principle, use techniques like callbacks, promises, and async/await to handle I/O operations without blocking the event loop. You can also utilize event emitters and listeners to trigger actions when specific events occur, such as incoming requests, database operations, or external API calls.

Here's a simple example of how to use event-driven, non-blocking I/O models in Node.js:

const http = require('http');

const server = http.createServer((req, res) => {
res.writeHead(200, {'Content-Type': 'text/plain'});
res.write('Hello, world!');

server.listen(8080, () => {
console.log('Server listening on port 8080');

Here, we're creating an HTTP server using Node.js's built-in http module. When a request comes in, the createServer callback function is invoked, and we write a "Hello, world!" response to the client. The listen function is used to start the server listening on port 8080.

Efficient error handling and logging

Best practices for error handling include validating input data, implementing retry logic, and handling unexpected errors gracefully to prevent crashes and downtime. Logging mechanisms will capture detailed information about errors, system events, and user behavior, which helps diagnose issues, monitor performance, and improve application security.

Firstly, validate all input data to prevent unexpected errors caused by invalid or malicious inputs. You should also implement retry logic to handle transient errors like network timeouts or server overload and provide clear error messages and a fallback mechanism to prevent crashes and downtime.

Implementing caching and load balancing strategies

Caching mechanisms can help reduce response time and improve performance by storing frequently accessed data in memory, such as database queries, HTTP responses, or rendered templates.

Load balancing strategies distribute traffic across multiple servers to prevent overload and ensure fault tolerance. This can be achieved through various techniques, such as round-robin, least-connections, or IP-hash load balancing.

For caching:

  • Implement in-memory caching using libraries like Node-cache or Redis to store frequently accessed data in memory.
  • Use client-side caching techniques like browser or HTTP to reduce server load and improve response time.
  • Use CDN (Content Delivery Network) to cache static content, like images or stylesheets, across multiple servers and reduce bandwidth usage.

For load balancing:

  • Use reverse proxy servers like NGINX or HAProxy to distribute traffic across multiple Node.js servers.
  • Use a load balancing algorithm such as round-robin, least-connections, or IP-hash to balance traffic across multiple servers.
  • Implement clustering in Node.js to create multiple application instances and distribute the load across those instances.

Adopting microservices and containerization

This last principle, just like the first one, is all about breaking down a large monolithic application into more minor, independently deployable services. These services then communicate with each other through APIs and then packaging these services into lightweight, portable containers that can be run on any infrastructure.

Containerization provides a lightweight, portable environment to package and run these services, making them easy to manage and scale. This principle enables teams to streamline development and deployment processes, increase scalability, and improve fault tolerance and resiliency, all while reducing complexity and cost.

Containerization also enables easy deployment and management of microservices across different environments and reduces the risk of compatibility issues. Popular containerization tools like Docker and Kubernetes can be used for this purpose.

For example, here’s how you do a Dockerfile for the authentication microservice in SQL:

FROM node:latest
COPY package*.json ./
RUN npm install
COPY . .
CMD [ "npm", "start" ]

This Dockerfile sets the base image as the latest version of Node.js, sets the working directory to /app, copies the package.json and package-lock.json files to the working directory, installs the dependencies using npm, copies the rest of the application code, exposes port 3000, and starts the server using the npm start command.

Building scalable Node.js applications

And now, onto the process itself.

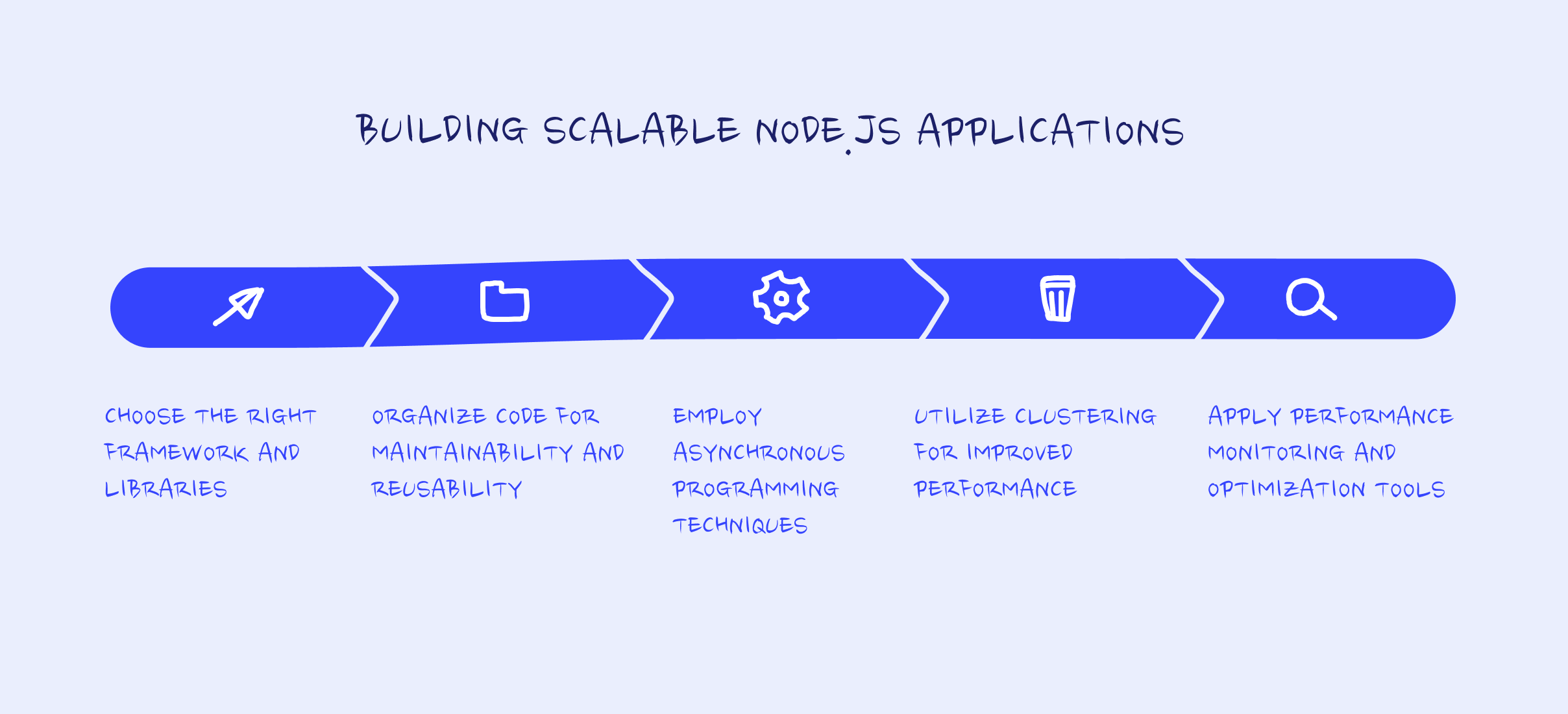

Scalable Node.js applications roadmap
Scalable Node.js applications roadmap

Choosing the right framework and libraries

First, consider factors like performance, flexibility, and community support. Popular frameworks include Express.js, Koa, and Hapi. Consider also using libraries like Lodash, Moment.js, and Bluebird for commonly used functionality. To avoid potential compatibility issues, choose libraries compatible with your chosen framework and version of Node.js. To top it off, thoroughly test and benchmark your application with different combinations of frameworks and libraries to ensure optimal performance.

Organizing code for maintainability and reusability

One of the most effective ways to achieve code organization is through using modular design patterns such as the Module Revealing Pattern, Singleton Pattern, and Factory Pattern. To implement them, use tools like Node.js modules, which help encapsulate and reuse code across multiple files and projects.

Additionally, use Node Package Manager (NPM) to manage dependencies and version control, ensuring code maintainability and consistency.

Another technique is to adhere to coding principles like SOLID (Single Responsibility, Open-Closed, Liskov Substitution, Interface Segregation, and Dependency Inversion) and DRY (Don't Repeat Yourself) to ensure clean, reusable, and maintainable code.

Finally, testing code regularly and implementing automated testing tools like Mocha, Chai, and Jest can help catch issues early and ensure code maintainability over time.

Employing asynchronous programming techniques

One important tool for employing asynchronous programming is using Promises and async/await functions to handle asynchronous operations. Another helpful method is to avoid blocking I/O operations and use non-blocking ones instead, like we mentioned before.

To make the most of asynchronous programming, structure code in a way that allows for efficient error handling and logging. The use of try/catch statements can help with this, along with the creation of custom error objects. Using middleware functions can also simplify the handling of common error scenarios.

Utilizing clustering for improved performance

When it comes to utilizing clustering in Node.js, the built-in cluster module is a powerful tool for leveraging multi-core processors and improving performance. By creating child processes that can handle incoming requests, Node.js can efficiently distribute the workload across available CPUs.

Other popular tools for clustering in Node.js include PM2, Forever, and StrongLoop Process Manager. It's important to properly configure the number of worker processes based on the available hardware resources and expected workload.

Remember to also implement monitoring and automatic failover mechanisms to ensure the application remains stable and available in case of any worker process failures.

Applying performance monitoring and optimization tools

One popular tool for this is New Relic, which allows you to monitor the performance of your application in real time and identify any bottlenecks or slow spots. Another tool is PM2, a production process manager for Node.js applications with features like automatic load balancing and zero downtime deployment.

When optimizing your code, it's important to profile your application to identify areas that consume the most resources and then make targeted optimizations to improve performance. Techniques like code minification, caching, and compression can also help reduce server load and improve response times.


Overcoming challenges in designing scalable Node.js architectures

Designing scalable Node.js architectures can present a range of challenges, but with the right approach, they can be successfully overcome.

Managing system resources and memory leaks

The first step in managing system resources and memory leaks is using tools like the built-in memory profiler and garbage collector, as well as third-party tools such as PM2, New Relic, and AppDynamics to monitor and analyze system resources and identify potential memory leaks.

Once the source of the issue is identified, solutions such as optimizing code, reducing memory usage, and implementing caching strategies can improve system performance and prevent future issues.

Ensuring application security and data protection

Some tools and techniques for ensuring security in Node.js applications include using middleware for authentication and authorization, implementing SSL/TLS encryption for data in transit, using secure session management techniques, and regularly scanning the system for security vulnerabilities with tools like OWASP ZAP, Nessus, and QualysGuard.

Once an application is built and ready to be deployed, the next challenge is to choose a deployment strategy that can handle the increasing workload without sacrificing performance or reliability. This involves navigating various scaling strategies, such as horizontal, vertical, and hybrid scaling, and choosing the right deployment tools and platforms.

Proper planning and preparation ensure the application can be scaled up or down seamlessly without downtime or disruption to users. It's also important to monitor the application's performance and resource usage to identify any scaling issues early on and make necessary adjustments.

Does your website meet your conversion benchmarks?

Not quite? We have solutions to get you there.

Learn more

Conclusion: unlocking the potential of scalable Node.js architectures

To sum it all up, unlocking the potential of scalable Node.js architectures, in general, requires the holistic process of embracing modularity, employing efficient error handling, adopting microservices and containerization, and utilizing performance monitoring and optimization tools.

To design robust and scalable Node.js applications that meet the demands of modern business, it is crucial to overcome challenges such as managing system resources, ensuring application security, and navigating deployment and scaling strategies.
